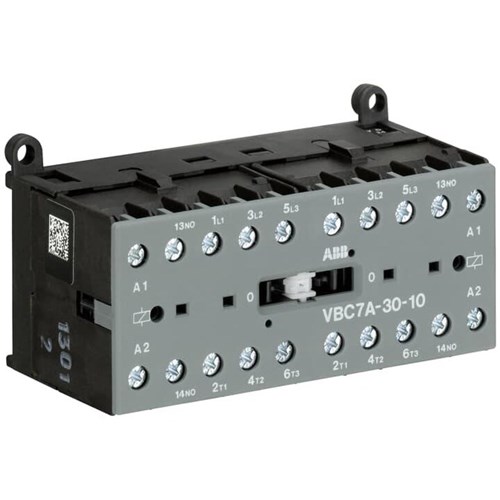

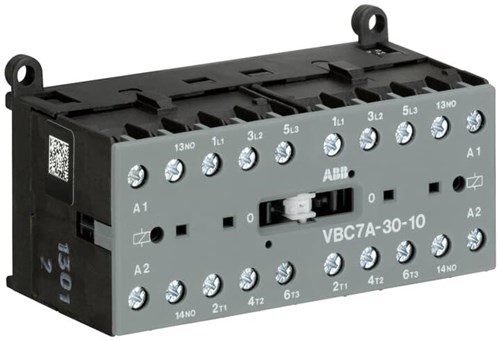

ABB VBC7A301001 Mini Contactor 3P 3NO 6A 4kW 24VAC Screw Rail Mount

Product Code: VBC7A301001

  • Compact size: 96.2mm x 57.5mm x 46.7mm
  • Rated for 6A, 24VAC operation
  • Reliable IP20 protection rating
  • Supports rail mounting for easy installation
  • Meets IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mini Contactor
Brand ABB
Actuating Voltage Type DC
Contact Configuration 1NC+3NO
Degree of Pollution IP3
Degree of Protection IP20
Depth 46.7 mm
Electrical Connection Screw
Function Reversing Contactor
Height 57.5 mm
Mounting Type Rail
Number of Poles 3
Operational Temperature -20 to 55 deg C
Power Loss 1.4-2 W
Rated Current 6 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Power 4 kW
Rated Voltage 24 VAC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Terminal Type Screw
Width 96.2 mm

Description

<p>When it comes to industrial and commercial applications, reliability and precision are paramount. The Mini Contactor in question is designed to meet these exacting standards with a range of features that ensure dependable performance for your electrical systems.</p><p>This compact yet robust device operates at a rated voltage of 24 VAC and can handle a current of up to 6 A. It is versatile enough to function across different environments thanks to its dual-rated frequency capability of 50/60 Hz. With an operational temperature range from -20&amp;#176;C to 55&amp;#176;C, this mini contactor is built for resilience in varying conditions.</p><p>Efficiency is another hallmark of this product, evident in its power loss parameters ranging between 1.4 W and 2 W, making it energy-conscious without compromising on performance. Its rated impulse withstand voltage stands at an impressive 6 kV, while the rated insulation voltage reaches up to 690 V, ensuring safety under high-voltage conditions.</p><p>The contact configuration includes one normally closed (NC) and three normally open (NO) contacts, offering flexibility in circuit design and control schemes. For ease of installation, the unit utilizes screw terminals for electrical connections and supports rail mounting — a standard that simplifies integration into existing setups.</p><p>Durability is assured with an IP20 degree of protection against solid objects larger than 12 mm but not against water ingress; thus it&amp;#39;s ideal for indoor use where such exposure is minimal. The device also adheres to IP3 pollution degree standards which further attests to its robustness in industrial environments.</p><p>Dimensions are compact at a width of 96.2 mm, height of 57.5 mm, and depth of just 46.7 mm — perfect for installations where space economy is critical without sacrificing functionality or accessibility.</p><p>Safety and compliance are key considerations with any electrical component; this mini contactor meets several international standards including IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 as well as UL certifications like UL 60947-1 and UL 60947-4-1 ensuring global applicability across various regulatory landscapes.</p><p>With a rated power capacity reaching up to 4 kW, this mini contactor effectively manages medium-scale loads efficiently powered by DC actuating voltage types — adding another layer of versatility depending on your specific needs or application scenarios.</p><p>In summary, whether you’re looking at new installations or upgrading existing systems within industrial settings such as manufacturing plants or commercial buildings requiring reliable switchgear solutions; this Mini Contactor delivers both quality engineering coupled with essential certifications needed today’s demanding technical requirements seamlessly integrated into modern infrastructure projects large small alike!</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
