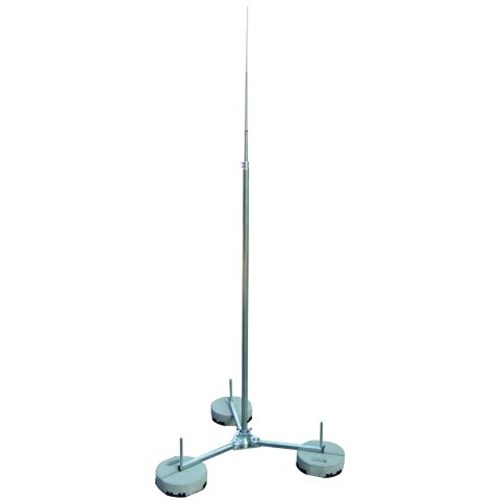

DEHN 105500 Air-Termination Rod W/Hinged Tripod 10mm Dia Round Conductor 5000mm L Steel

Product Code: 105500

  • Isolated lightning protection system
  • Compatible with round conductors
  • Hot dip galvanized steel for durability
  • Available in 3, 6, or 9 block bases
  • Meets DIN EN standards for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Air-Termination Rod With Hinged Tripod
Brand DEHN
Base Type 3 Blocks, 6 Blocks, 9 Blocks
Connection Type Round Conductor
Depth 1340 mm
Finish Hot Dip Galvanized
Height 5000 mm
Material Steel
Model Interception rod
Size 10 mm
Standards and Approvals DIN EN 62561-(1+2), DIN EN 1991-1-4, DIN EN 1991-1-4/NA
Weight 15 kg
Width 1210 mm

Description

<p>When it comes to safeguarding your industrial or commercial property from the unpredictable nature of lightning, choosing a reliable isolated lightning protection system is crucial. This robust solution offers peace of mind through its durable construction and compliance with international standards.</p><p>Crafted from high-quality steel, this isolated lightning protection system ensures long-lasting performance and resilience against harsh environmental conditions. The hot dip galvanized finish enhances its durability by providing superior corrosion resistance, making it ideal for use in varied climates across Australia.</p><p>The design features a round conductor connection type, which is known for its efficiency in directing electrical discharges safely into the ground. With dimensions measuring 1210 mm in width, 5000 mm in height, and 1340 mm in depth, this product is well-suited for large-scale installations requiring substantial coverage area.</p><p>Weighing just 15 kg, the system is relatively lightweight considering its size and material composition. This aspect simplifies transport and installation processes without compromising on structural integrity or effectiveness.</p><p>Versatility is another key feature of this product due to its adaptable base types available in configurations of 3 blocks, 6 blocks, or 9 blocks. This flexibility allows users to customize their setup according to specific site requirements while ensuring optimal stability and performance.</p><p>Adherence to rigorous standards such as DIN EN 62561-(1+2), DIN EN 1991-1-4, and DIN EN 1991-1-4/NA underscores the reliability of this lightning protection system. These certifications demonstrate that it meets stringent safety criteria designed to protect structures from potential damage caused by lightning strikes.</p><p>In summary, if you are seeking an isolated lightning protection solution that combines durability with compliance and adaptability for your project needs across various industrial or commercial applications—this product stands out as a dependable choice backed by proven engineering principles.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
