Specifications

Product Type	SV Clamp
Brand	DEHN
Clamping Range	7-10 mm
Connection Type	M10 x 30 mm Screw
Connector Type	Cross Connector
Depth	3 mm
Finish	Untreated
Height	30 mm
Lid Screw Type	Flat Round Screw
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Stainless Steel
Rated Short Circuit Current	3.2 kA
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Weight	190 g
Width	94 mm

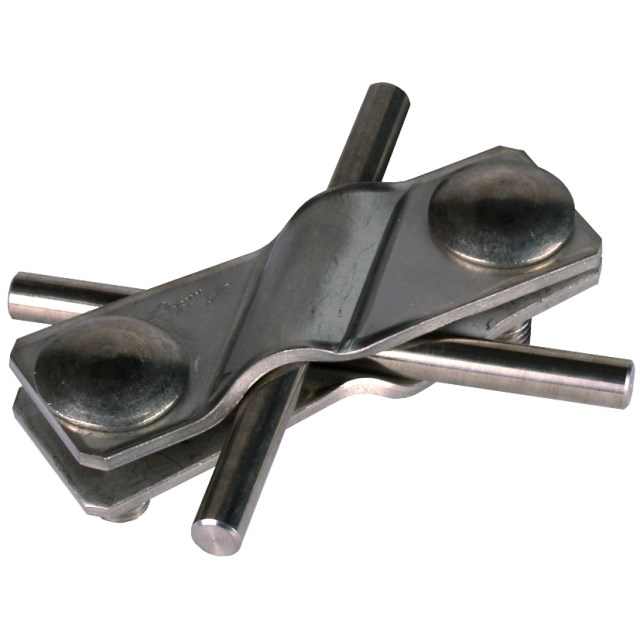

DEHN 308229 SV Clamp 7-10mm M10 x 30mm Screw Stainless Steel
