Specifications

Product Type	SV Clamp
Brand	DEHN
Clamping Range	30 mm
Connection Type	M10 x 30 mm Screw
Connector Type	Cross Connector
Depth	4 mm
Finish	Hot Dip Galvanized
Height	30 mm
Lid Screw Type	Flat Round Screw
Lightning Current Carrying Capability	100 kA
Material	Steel
Rated Short Circuit Current	8.2 kA
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Suitable For Use With	FL 30/FL
Weight	241 g
Width	94 mm

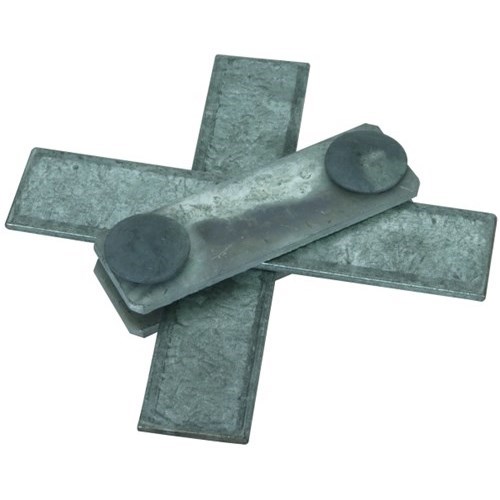

DEHN 308230 SV Clamp 30mm M10 x 30mm Screw Steel
