Specifications

Product Type	SV Clamp
Brand	DEHN
Clamping Range	7-10 mm
Connection Type	M10 x 30 mm Screw
Connector Type	Cross Connector
Depth	4 mm
Finish	Hot Dip Galvanized
Height	30 mm
Lid Screw Type	Flat Round Screw
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Steel
Rated Short Circuit Current	14 kA
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Weight	266 g
Width	108 mm

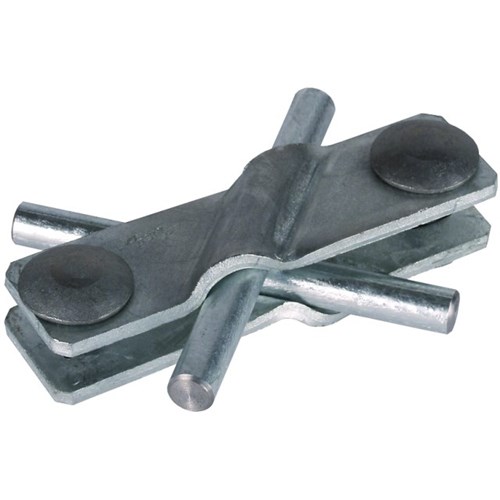

DEHN 308320 SV Clamp 7-10mm M10 x 30mm Screw Steel
