Specifications

Product Type	SV Clamp
Brand	DEHN
Clamping Range	7-10 mm
Connection Type	M10 x 30 mm Screw
Connector Type	Cross Connector
Depth	3 mm
Finish	Untreated
Height	30 mm
Lid Screw Type	Flat Round Screw
Lightning Current Carrying Capability	100 kA
Material	Stainless Steel
Rated Short Circuit Current	14 kA
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Weight	220 g
Width	108 mm

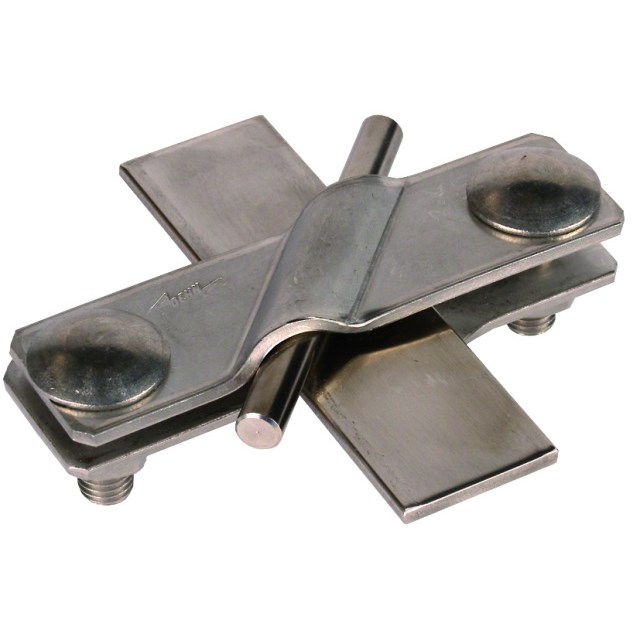

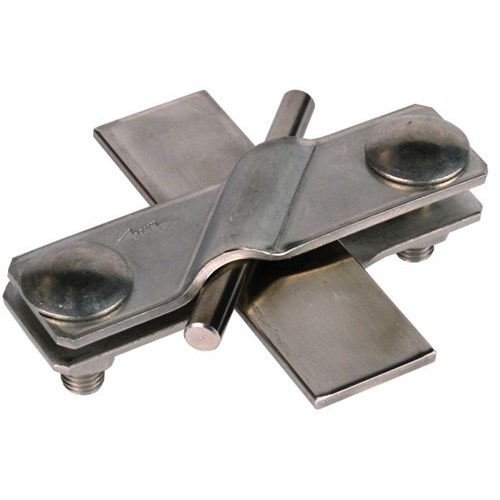

DEHN 308329 SV Clamp 7-10mm M10 x 30mm Screw Stainless Steel
