Specifications

Product Type	EPC Connector With Truss Head Screw
Brand	DEHN
Clamping Range	8 mm
Connection Type	M10 x 35 mm Screw
Connector Type	T Connector
Depth	22 mm
Finish	Untreated
Height	27 mm
Lid Screw Type	Clamp Screw
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Die Cast Zinc
Screw Size	M10 x 35mm
Standards and Approvals	EN 62561-1
Weight	124 g
Width	49 mm

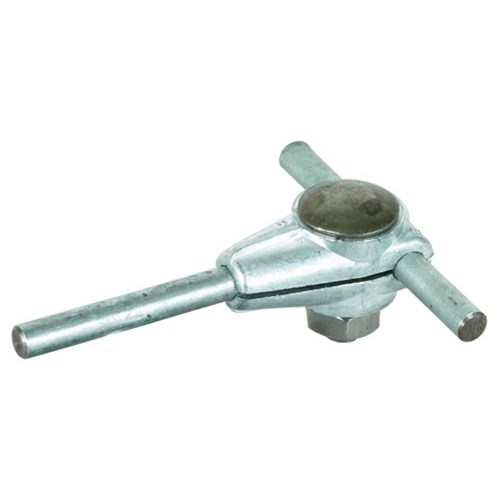

DEHN 310008 EPC Connector W/Truss Head Screw M10 x 35mm Screw 49mm W 22mm D 27mm H Die Cast Zinc
