Specifications

Product Type	Cross Unit
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M6 x 20 mm Screw
Connector Type	Cross Connector
Depth	2.5 mm
Finish	Untreated
Height	50 mm
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Copper
Screw Size	M6 x 20mm
Standards and Approvals	EN 62561-1
Weight	0.132 kg
Width	50 mm

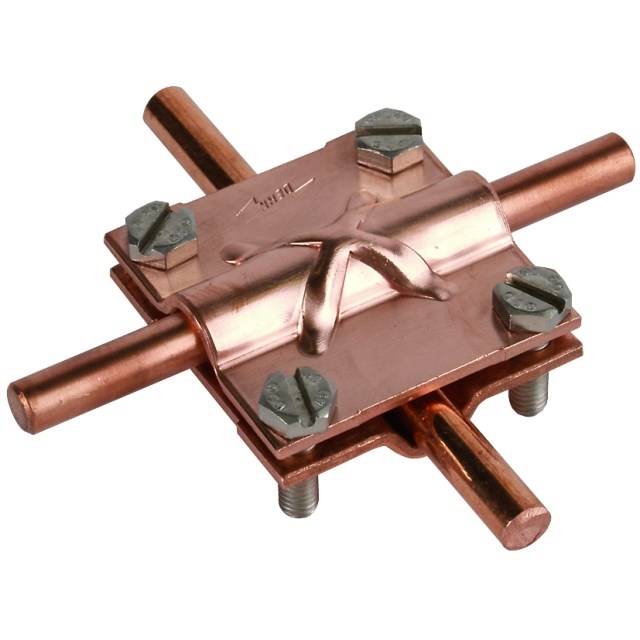

DEHN 314307 Cross Unit M6 x 20mm Screw 50mm W 2.5mm D 50mm H Copper
