Specifications

Product Type	Cross Unit
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M6 x 20 mm Screw
Connector Type	Cross Connector
Depth	2.5 mm
Finish	Hot Dip Galvanized
Height	50 mm
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Steel
Screw Size	M6 x 20mm
Standards and Approvals	EN 62561-1
Weight	0.174 kg
Width	50 mm

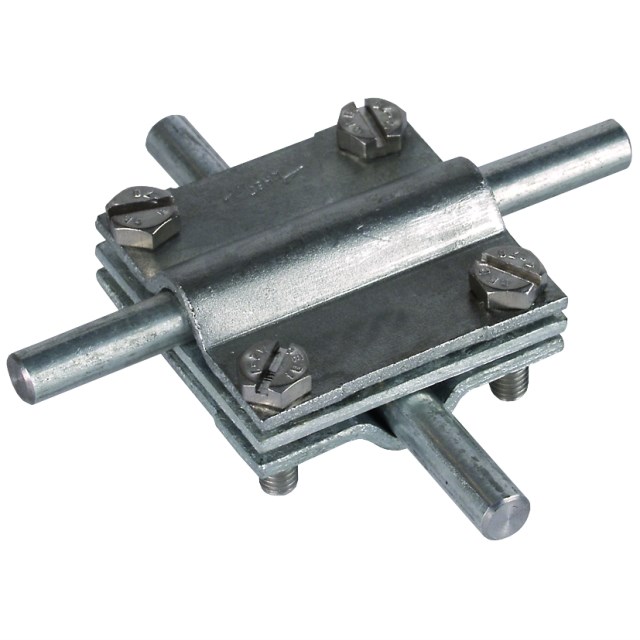

DEHN 314310 Cross Unit M6 x 20mm Screw 50mm W 2.5mm D 50mm H Steel
