Specifications

Product Type	Cross Unit
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M8 x 25 mm Screw
Connector Type	Cross Connector
Depth	3 mm
Finish	Hot Dip Galvanized
Height	60 mm
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Steel
Rated Short Circuit Current	14 kA
Screw Size	M8 x 25mm
Standards and Approvals	EN 62561-1
Weight	0.241 kg
Width	60 mm

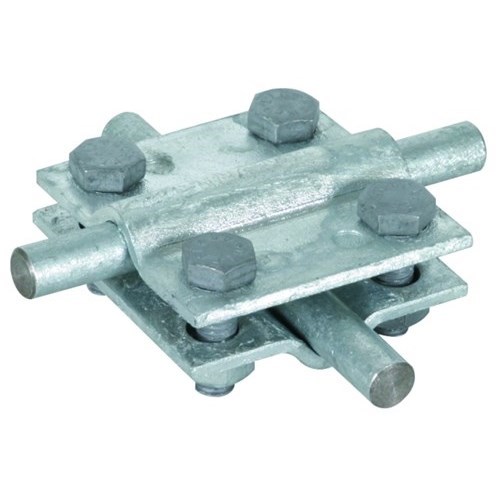

DEHN 318251 Cross Unit M8 x 25mm Screw 60mm W 3mm D 60mm H Steel
