Specifications

Product Type	Cross Unit
Brand	DEHN
Clamping Range	8-10 mm, 30-40 mm
Conductor Size	8 mm
Connection Type	M8 x 30 mm Screw
Connector Type	Cross Connector
Depth	3 mm
Finish	Hot Dip Galvanized
Height	70 mm
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Steel
Rated Short Circuit Current	12.6 kA
Screw Size	M8 x 30mm
Standards and Approvals	EN 62561-1
Weight	0.413 kg
Width	70 mm

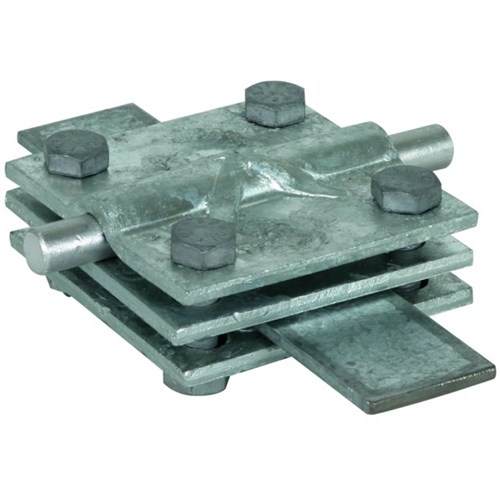

DEHN 321045 Cross Unit M8 x 30mm Screw 70mm W 3mm D 70mm H Steel
