Specifications

Product Type	Saddle Clamp With Clamping Frame
Brand	DEHN
Clamping Range	0.7-8 mm
Connection Type	M8 x 25 mm Screw
Connector Type	Saddle Clamp
Depth	5 mm
Finish	Untreated
Height	7 mm
Lid Screw Type	Flat round screw
Lightning Current Carrying Capability	50 kA
Material	Stainless Steel
Mounting Type	With screw clamp
Screw Size	M8
Standards and Approvals	EN 62561-1
Thickness	2.5 mm
Weight	134 g
Width	5 mm

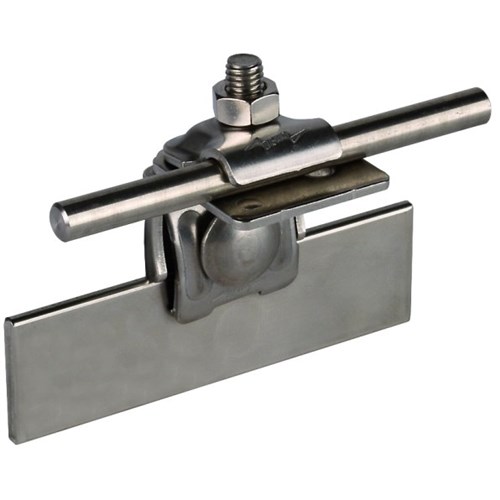

DEHN 365059 Saddle Clamp W/Clamping Frame 0.7-8mm M8 x 25mm Screw Stainless Steel
