Specifications

Product Type	Air-Termination Rod Clamp
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	16 mm
Connection Type	M10 x 45 mm Screw
Connector Type	Parallel connector
Depth	5 mm
Finish	Untreated
Height	6 mm
Lid Screw Type	Other
Lightning Current Carrying Capability	100 kA
Material	Aluminium
Screw Size	M10 x 45
Standards and Approvals	EN 62561-1
Thickness	3 mm
Weight	100 g
Width	6 mm

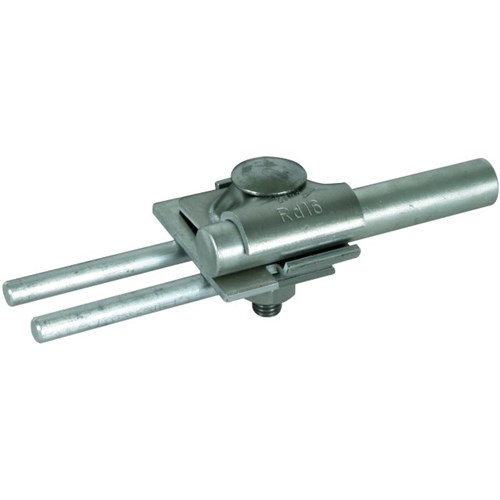

DEHN 380116 Air-Termination Rod Clamp M10 x 45mm Screw 16mm Aluminium
