Specifications

Product Type	MV Clamp
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M10 x 35 mm Screw
Connector Type	T-/cross-/parallel connector
Depth	4 mm
Finish	Hot Dip Galvanized
Height	4 mm
Lid Screw Type	Flat round screw
Lightning Current Carrying Capability	100 kA
Material	Steel
Screw Size	M10 x 35
Standards and Approvals	EN 62561-1
Thickness	2.5 mm
Weight	0.108 kg
Width	4 mm

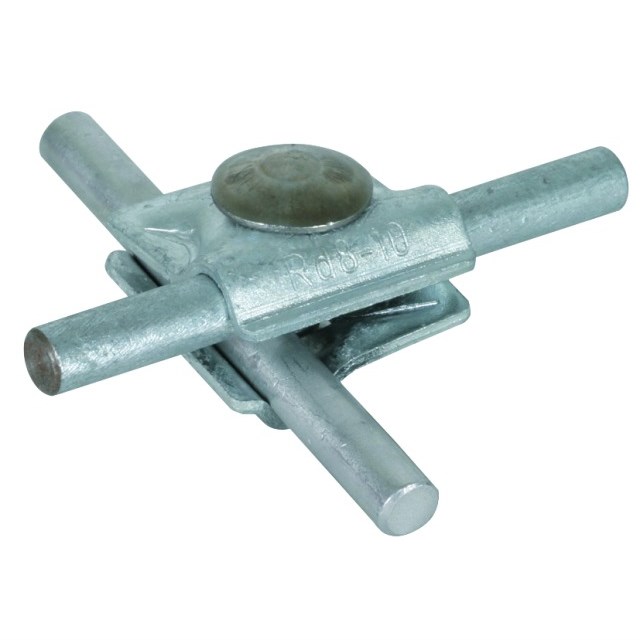

DEHN 390060 MV Clamp 8-10mm M10 x 35mm Screw Steel
