Specifications

Product Type	MV Clamp With Head Screw and Nut
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M10 x 35 mm Screw
Connector Type	T-/cross-/parallel connector
Depth	4 mm
Finish	Untreated
Height	4 mm
Lid Screw Type	Flat round screw
Lightning Current Carrying Capability	100 kA
Material	Aluminium
Screw Size	M10 x 35
Standards and Approvals	EN 62561-1
Thickness	3 mm
Weight	0.067 kg
Width	4 mm

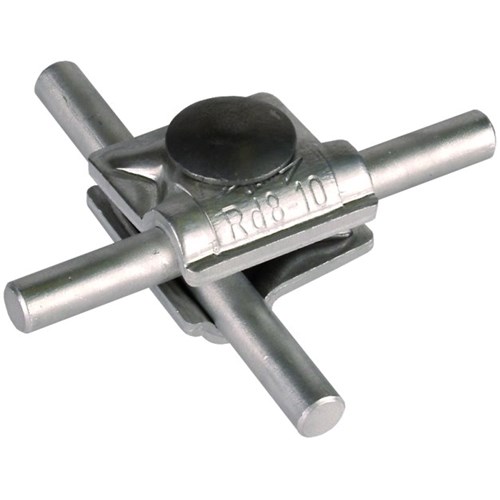

DEHN 390061 MV Clamp W/Head Screw and Nut 8-10mm M10 x 35mm Screw Aluminium
