Specifications

Product Type	Clamping Piece With Truss Head Screw
Brand	DEHN
Clamping Range	6-10 mm
Connection Type	M10 x 35 mm Screw
Connector Type	Clamp connector
Depth	3 mm
Finish	Untreated
Height	4 mm
Lid Screw Type	Flat round screw
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Copper
Screw Size	M10 x 35
Standards and Approvals	EN 62561-1
Thickness	2.5 mm
Weight	53 g
Width	3 mm

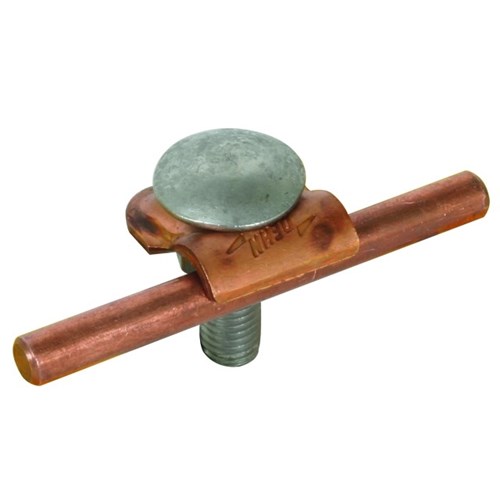

DEHN 390157 Clamping Piece W/Truss Head Screw 6-10mm M10 x 35mm Screw Copper
