Specifications

Product Type	MV Clamp With Screw and Spring Washer
Brand	DEHN
Clamping Range	10 mm
Conductor Size	10 mm
Connection Type	M10 x 35 mm Screw
Connector Type	T/Cross/Parallel Connector
Depth	40 mm
Finish	Untreated
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Stainless Steel
Screw Size	M10 x 35mm
Standards and Approvals	EN 62561-1
Suitable For Use With	Round Conductor
Thickness	2.5 mm
Weight	0.1 kg
Width	40 mm

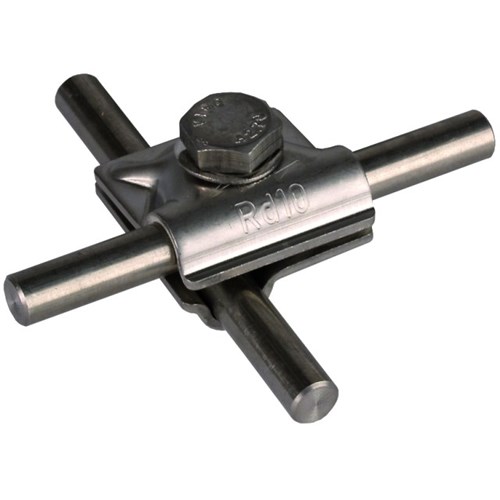

DEHN 391559 MV Clamp W/Screw and Spring Washer 10mm M10 x 35mm Screw Stainless Steel
