Specifications

Product Type	MV Clamp With Hexagon Screw and Spring Washer
Brand	DEHN
Clamping Range	8-10 mm, 16 mm
Conductor Size	8 mm
Connection Type	M10 x 40 mm Screw
Connector Type	T/Cross/Parallel Connector
Depth	44 mm
Finish	Untreated
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Stainless Steel
Screw Size	M10 x 40mm
Standards and Approvals	EN 62561-1
Suitable For Use With	Air Termination Rods and Round Conductors
Thickness	3 mm, 2.5 mm
Weight	0.119 kg
Width	48 mm

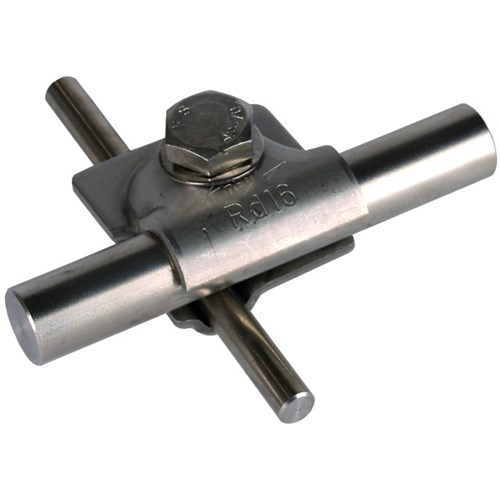

DEHN 392059 MV Clamp W/Hexagon Screw and Spring Washer 8-10mm 16mm M10 x 40mm Screw Stainless Steel
