Specifications

Product Type	Earthing Pipe Clamp
Brand	DEHN
Clamping Range	21 mm
Conductor Size	4-10 mm
Connection Type	M10 x 30 mm, M8 x 20 mm Screw
Cross Section	70 sq-mm
Depth	40 mm
Finish	Hot Dip Galvanized
Lightning Current Carrying Capability	100 kA
Material	Malleable Cast Iron
Number of Conductors	1
Screw Size	M10 x 30mm / M8 x 20mm
Standards and Approvals	EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), IEC 62305-3
Suitable For Use With	Integrating Pipes
Weight	0.432 kg
Width	80 mm

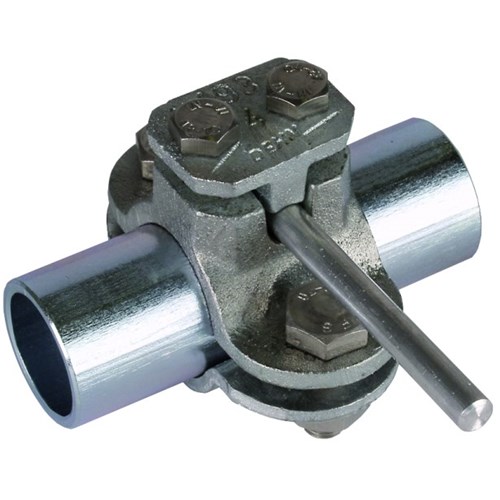

DEHN 407012 Earthing Pipe Clamp 21mm M10 x 30mm M8 x 20mm Screw Malleable Cast Iron
