Specifications

Product Type	Earthing Pipe Clamp
Brand	DEHN
Clamping Range	55 mm
Conductor Size	55 mm
Connection Type	M10 x 25 mm Screw
Depth	40 mm
Finish	Untreated
Lightning Current Carrying Capability	100 kA
Material	Stainless Steel
Number of Conductors	1
Screw Size	M10 x 25mm
Size	11 mm
Standards and Approvals	EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), IEC 62305-3
Suitable For Use With	Earthing Rods
Weight	0.26 kg
Width	145 mm

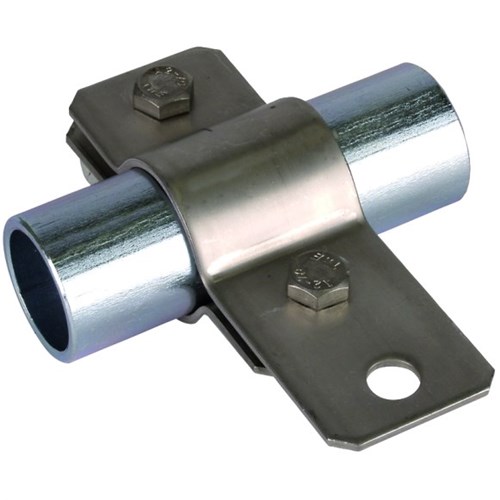

DEHN 410369 Earthing Pipe Clamp 55mm 11mm M10 x 25mm Screw Stainless Steel
