Specifications

Product Type	Connection Clamp
Brand	DEHN
Clamping Range	7-10 mm, 30-40 mm
Connection Type	M10 x 45 mm, M8 x 25 mm Screw
Connector Type	Connection Clamps with threaded bolts
Depth	3 mm
Finish	Hot Dip Galvanized
Height	70 mm
Lid Screw Type	Hexagon screw
Lightning Current Carrying Capability	50 kA
Material	Steel
Screw Size	M8/M10
Standards and Approvals	EN 62561-1
Suitable For Use With	Fixed Earthing
Weight	338 g
Width	70 mm

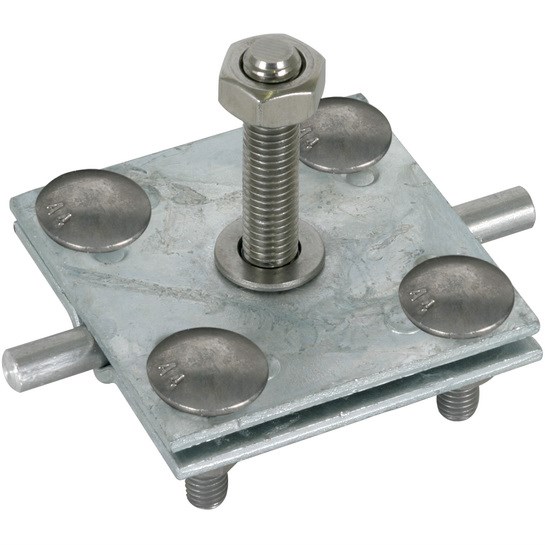

DEHN 478141 Connection Clamp 7-10mm 30-40mm M10 x 45mm M8 x 25mm Screw Steel
