Specifications

Product Type	Connection Clamp With Threaded Bolt
Brand	DEHN
Clamping Range	7-10 mm, 30-40 mm
Connection Type	M16 x 65 mm, M8 x 25 mm Screw
Connector Type	Connection Clamps with threaded bolts
Depth	3 mm
Finish	Untreated
Height	70 mm
Lid Screw Type	Hexagon screw
Lightning Current Carrying Capability	100 kA
Material	316 Stainless Steel
Rated Short Circuit Current	5.9 kA
Screw Size	M8/M16
Standards and Approvals	EN 62561-1
Weight	464 g
Width	70 mm

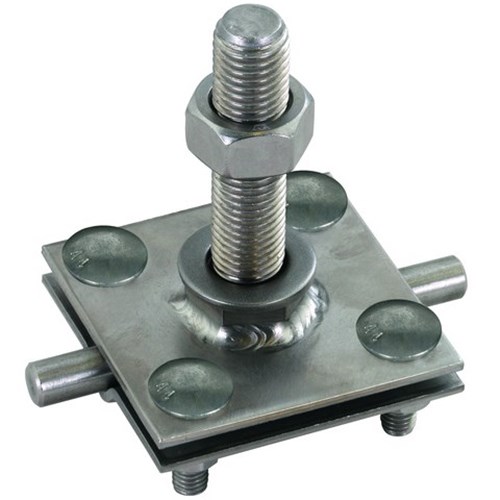

DEHN 478150 Connection Clamp W/Threaded Bolt 7-10mm 30-40mm M16 x 65mm M8 x 25mm Screw 316 Stainless Steel
