Specifications

Product Type	Equipotential Bonding Busbar
Brand	DEHN
Connection Size	2 x 8-10 mm, 16-95 sq-mm
Connection Type	7 x 2.5-25 sq-mm
Contact Material	Brass
Cross Section	100 sq-mm
Depth	56 mm
Height	66 mm
Lightning Current Carrying Capability	100 kA
Model	With Covering Cap
Rated Short Circuit Current	9.2 kA
Standards and Approvals	EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), IEC/EN 62305-3, DIN VDE 0609
Weight	469 g
Width	200 mm

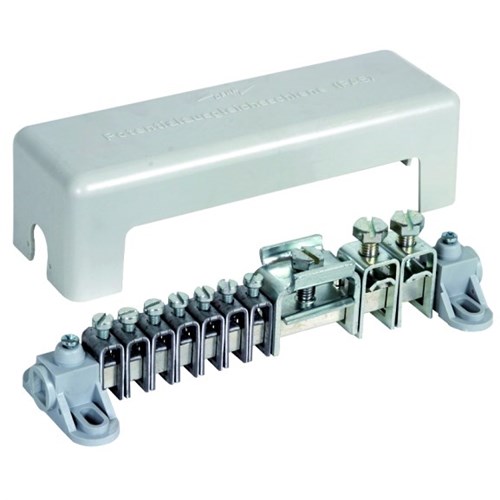

DEHN 563010 Equipotential Bonding Busbar 7 x 2.5-25sq-mm 200mm W 56mm D 66mm H
