Specifications

Product Type	Non-contact voltage detector kit
Brand	DEHN
Series	ASP Non-Contact Voltage Detector Kit
Application	Switchgear installations and overhead lines
Suitable For	Overhead Lines and Outdoor Switching Stations
Indication	Acoustic and visual
Rated Frequency	50 Hz
Rated Voltage	110-420 V
Nominal Voltage	110 to 420 kV AC
Handle Length	264 mm
Material	Material (indicator): Plastic, fully insulated (black); material (electric field sensor): Plastic (black); insulating stick material: Glass-fibre reinforced polyester tube
Model	1-pole
Depth	11 mm
Height	105 mm
Length	1000 mm
Weight	1.23 kg
Width	11 mm
Total Length	1000 mm
Operating Temperature	-25 to 55 degC
Standards and Approvals	EN 50110-1 (DIN VDE 0105-100)

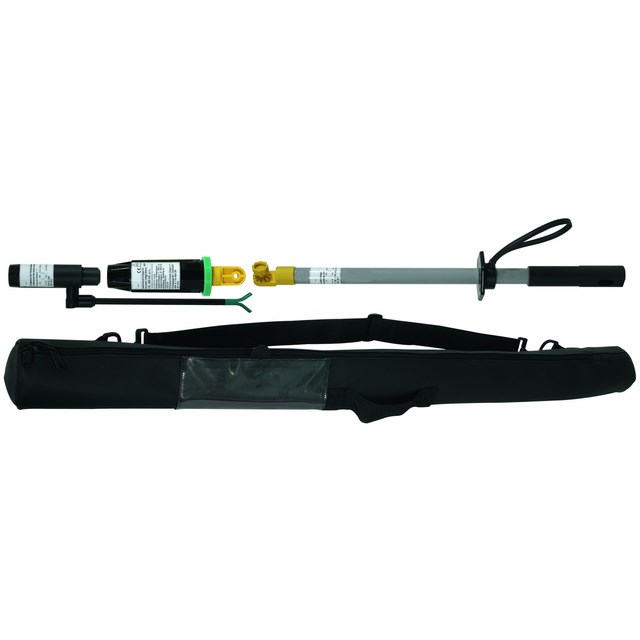

DEHN ASP110420S Non-Contact Voltage Detector 110-420V 50Hz 1000mm L 11mm W 105mm H Plastic
