Specifications

Product Type	Bolted-type Connector with Threaded Pin and Separate Hexagon Nut
Brand	DEHN
Series	Fixed Earthing Points
Application	Earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100).
Connection Type	Stud Bolt
Rated Cross-Section	150 sq-mm
Suitable For	Earthing Rods
Rated Current	29.6 A
Material	StSt, Cualloy / gal Sn / HDG steel
Thread Size	M12 x 55 mm
Weight	122.4 g
Size	32 mm
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-5

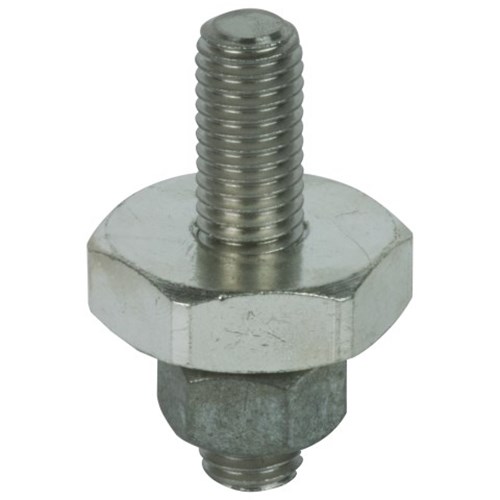

DEHN ASSCHRM1255 Bolted-Type Connector With M12 Bolt and Nut 29.6A 32mm Stud Bolt M12x55mm SS
