Specifications

Product Type	Bolted-type Connector with Female Thread
Brand	DEHN
Series	Fixed Earthing Points
Application	Earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100).
Connection Type	Internal Thread
Rated Cross-Section	150 sq-mm
Suitable For	Earthing Rods
Rated Current	29.6 A
Material	Cualloy / gal Sn, StSt A2-70
Mounting Type	Thread Bolt
Thread Size	M12 x 40 mm
Weight	183.2 g
Size	27 mm
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-5

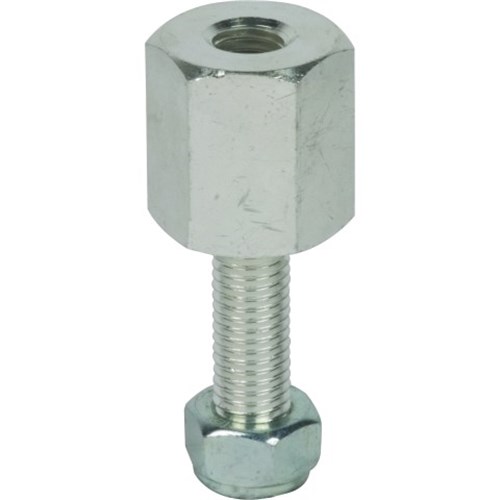

DEHN ASSCHRM12M1240 Bolted-Type Connector With M12 Female Thread 29.6A 27mm Internal Thread Bolt Mount M12x40mm
