Specifications

Product Type	Bolted-type Connector with Threaded Pin and Separate Hexagon Nut
Brand	DEHN
Series	Fixed Earthing Points
Application	Earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100).
Connection Type	Stud Bolt
Rated Cross-Section	150 sq-mm
Suitable For	Earthing Rods
Rated Current	42 A
Material	StSt, Cualloy / gal Sn / HDG steel
Mounting Type	Thread Bolt
Thread Size	M16 x 65 mm
Weight	249.8 g
Size	41 mm
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-5

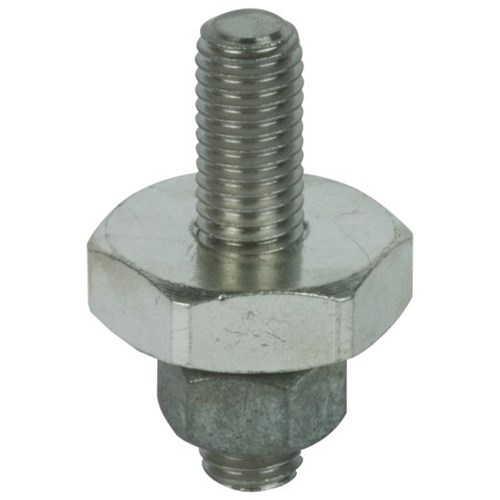

DEHN ASSCHRM1665 Bolted-Type Connector With Nut 42A 41mm Stud Bolt Thread Bolt Mount M16x65mm SS
