Specifications

Product Type	Weld-on Connector with Threaded Pin
Brand	DEHN
Series	Fixed Earthing Points
Application	Earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100).
Connection Type	Stud Bolt
Suitable For	Earthing Rods
Rated Current	42 A
Material	St/gal Zn, StSt A2-70
Mounting Type	Weldable
Thread Size	M16 x 30 mm
Weight	298.2 g
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-5

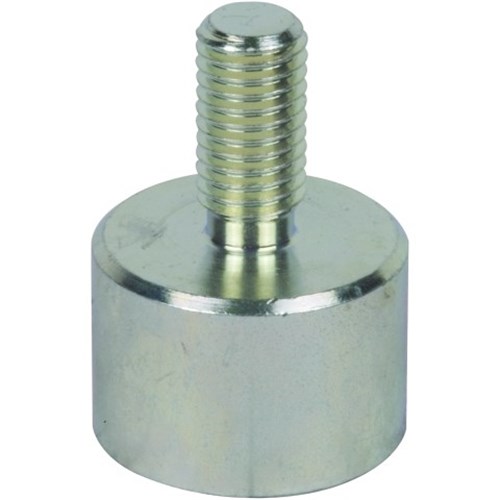

DEHN ASSCHWM1630 Welding-Type Connector 42A Stud Bolt Weldable Mount M16 x 30mm Steel Tin Coated Copper
