Specifications

Product Type	Surge protective device
Brand	DEHN
Series	DEHNconnect RK
Application	Surge protective device with efficient diodes between the signal lines for SIEMENS-SPS S7-300 digital output modules (laboratory tested). The terminal allows increased EMC protection. No connection to PG.
Connection Type	Spring Clamp
Max. Continuous Operating Voltage (AC/DC)	+30 V DC, -6 V DC
Rated Cross-Section	0.08-2.5 sq-mm Solid, 0.08-2.5 sq-mm Flexible
Rated Current	10 A
Rated Voltage	24 V
Nominal Voltage	+24 V DC, -5 V DC
SPD Type	Type 4
Voltage Protection Level Up	45 V
Nominal Discharge Current Inom (8/20µs)	0.3 kA
Colour	Yellow
Material	Polyamide
Mounting Method	35 mm DIN rail acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	0.08 to 2.5 mm2
Depth	57 mm
Height	92 mm
Weight	33 g
Width	6 mm
Operating Temperature	-40 to 80 °C
IP Rating	IP00, with cover IP20
Standards and Approvals	IEC 61643-21, EN 61643-21

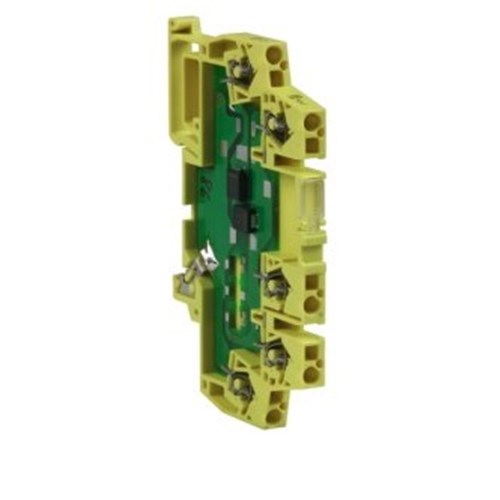

DEHN DCORKD524 Surge Protective Block 10A 24V Spring Clamp 35mm DIN Rail Polyamide Yellow IP20
