Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNflex
Application	For all installation systems of 230 V terminal equipment
Max. Backup Fuse	B 16 A
Max. Continuous Operating Voltage (AC/DC)	255 V AC
Rated Cross-Section	1 sq-mm
Communication Ports	1
Rated Current	1.5 kA
Rated Short Circuit Current	1 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Response Time	<= 25 ns, <= 100 ns (L/N-PE)
SPD Type	Type 3, Class III
Voltage Protection Level Up	1250 V, 1500 V
Short Circuit Current Rating	1 kA
Nominal Discharge Current Inom (8/20µs)	1.5 kA
No. of Poles	2
Colour	Red
Material	Thermoplastic
Mounting Method	Flush-mounted systems, cable ducts and flush-type boxes
Depth	11 mm
Height	50 mm
Weight	18 g
Width	30 mm
Operating Temperature	-25 to 40 degC
IP Rating	IP20

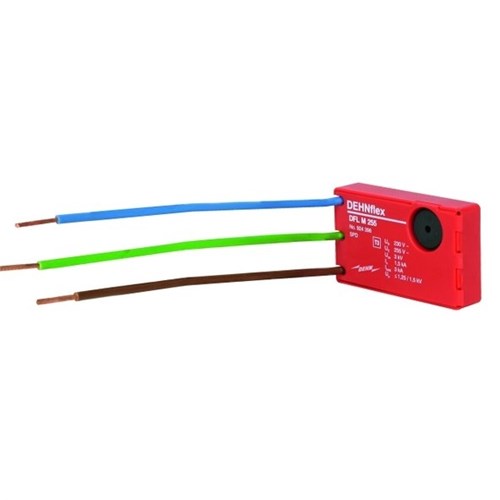

DEHN DFLM255 Surge Arrester 1.5kA 230VAC Thermoplastic Red IP20
