Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNguard 1000
Application	For protecting low-voltage consumer's installations against surges
Max. Backup Fuse	100 A aM
Max. Continuous Operating Voltage (AC/DC)	1000 V AC, 1000 V DC
Rated Cross-Section	1.5 sq-mm
Breaking Capacity	100 A
Communication Ports	1
Rated Current	15 kA
Rated Short Circuit Current	25 kA
Rated Voltage	830 VAC
Nominal Voltage	830 V AC
Response Time	<= 25 ns
SPD Type	Type 2, Class II
Voltage Protection Level Up	4.2 kV
Max. Discharge Current Imax (8/20µs)	30 kA
Short Circuit Current Rating	25 kA
Nominal Discharge Current Inom (8/20µs)	15 kA
No. of Poles	1
Material	Thermoplastic
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	1.5 to 35 mm2
Depth	65 mm
Height	103 mm
Weight	184 g
Width	36 mm
No. of Modules Width	2
Operating Temperature	-40°C to 80°C
IP Rating	IP20
Standards and Approvals	UL

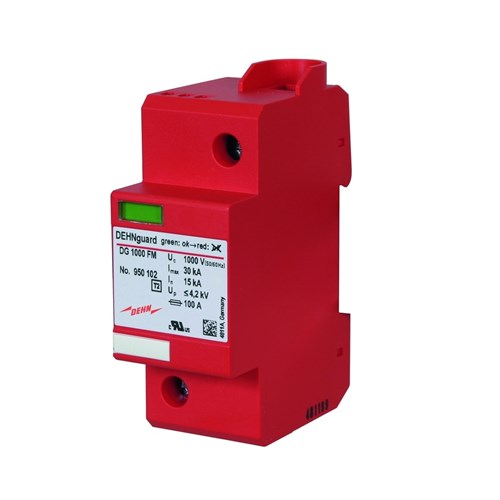

DEHN DG1000 Type-2 Surge Arrester 1-P 15kA 830VAC 35mm DIN Rail Thermoplastic IP20
