Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNgate
Application	With integrated measuring / test output for coaxial 75-ohm TV and SAT systems, tested to EN 61643-21, energy-coordinated with DGA GF TV lightning current arrester, suitable for remote supply, wall-mounted adapter and two F-connectors included
Connection Type	F Socket / F Socket
Lightning Impulse Current Iimp (10/350µs)	0.2 kA
Rated Current	2 A
Rated Voltage	24 VDC
SPD Type	Type 3
Voltage Protection Level Up	60 V
Nominal Current	2 A
Nominal Discharge Current Inom (8/20µs)	1.5 kA
Max. Continuous Operating Voltage (DC)	24 V
Colour	Bare Surface
Material	Metal
Mounting Method	35 mm DIN rails acc. to EN 60715 or wall mounting
Mounting Type	35 mm DIN Rail
Depth	59 mm
Height	90 mm
Weight	233 g
Width	27 mm
Operating Temperature	-40°C to 80°C
IP Rating	IP30
Standards and Approvals	IEC 61643-21, EN 61643-21

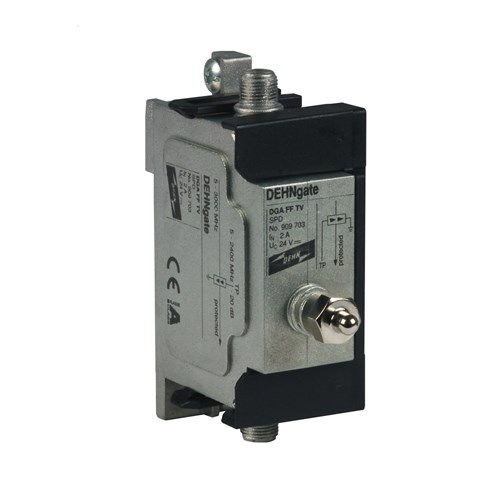

DEHN DGAFFTV Surge Arrester 0.2kA 2A 24VDC 35mm DIN Rail Metal Bare Surface IP30
