Specifications

Product Type	Lightning current arrester
Brand	DEHN
Series	DEHNgate
Application	For coaxial 75-ohm TV and SAT systems, tested to EN 61643-21, energy-coordinated with surge arrester DGA FF TV, suitable for remote supply, earthing via earthing block, earthing block and two F-connectors included
Connection Type	F-Socket, F-Plug
Lightning Impulse Current Iimp (10/350µs)	2.5 kA
Rated Current	2 A
Rated Voltage	60 VDC
SPD Type	Type 1
Voltage Protection Level Up	600 V
Nominal Current	2 A
Nominal Discharge Current Inom (8/20µs)	10 kA
Max. Continuous Operating Voltage (DC)	60 V
Colour	Bare Surface
Material	Metal
Mounting Method	earthing brackets
Height	49 mm
Weight	86 g
Operating Temperature	-40°C to 80°C
IP Rating	IP30
Standards and Approvals	IEC 61643-21, EN 61643-21

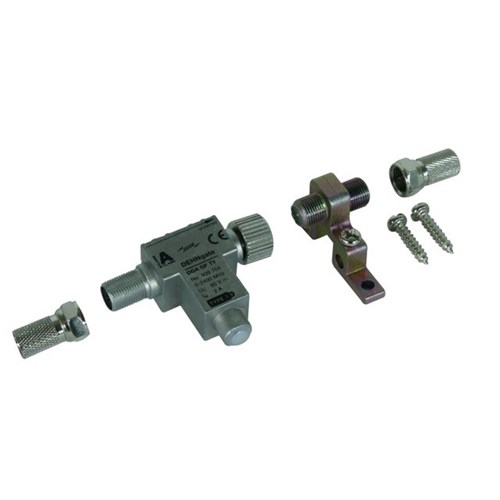

DEHN DGAGFTV Surge Arrester 2.5kA 2A 60VDC F-Socket F-Plug Metal Bare Surface IP30
