Specifications

Product Type	Surge Arrester
Brand	DEHN
Cross Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	90 mm
Interrupt Rating	125 A
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Poles	4
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	15 kA
Rated Short Circuit Current	50 kA
Rated Voltage	120/240 V
Response Time	<= 25 ns (L-N), <= 100 ns (N-PE)
SPD Class	Type 2, Class II
Standards and Approvals	UL
Voltage Protection Level	<=0.7 kV (L-N), <=1.5 kV (N-PE)
Weight	390 g
Width	72 mm

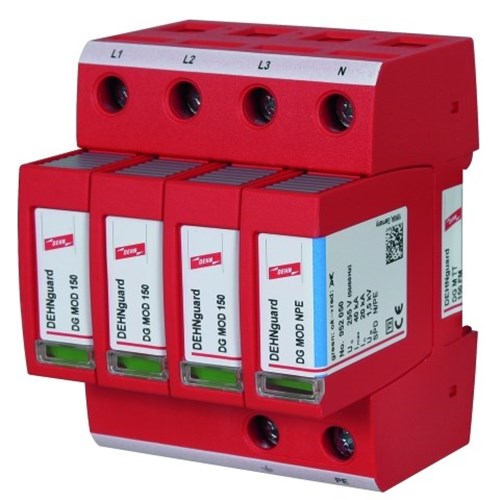

DEHN DGMTT150FM Surge Arrester 4-P 15kA 120/240V 35mm DIN Rail Thermoplastic IP20
