Specifications

Product Type	M-Surge Arrester
Brand	DEHN
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Breaking Capacity	100 A
Communication Ports	1
Rated Current	15 kA
Rated Short Circuit Current	25 kA
Rated Voltage	480 V
Response Time	<= 25 ns
SPD Type	Type 2, Class II
Voltage Protection Level Up	<=3 kV
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Depth	66 mm
Height	90 mm
Weight	386 g
Width	54 mm
Operating Temperature	-40 to 80 deg C
IP Rating	IP20
Standards and Approvals	KEMA, UL

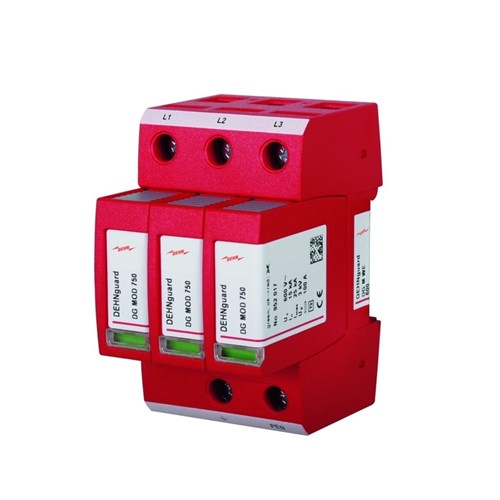

DEHN DGMWE600 M-Surge Arrester 15kA 480V 35mm DIN Rail Mount Thermoplastic IP20
