Specifications

Product Type	Lightning Arrester
Brand	DEHN
Lightning Impulse Current Iimp (10/350µs)	100 kA
Rated Cross-Section	10 sq-mm Solid/Flexible, 50 sq-mm Stranded, 35 sq-mm Flexible
Communication Ports	1
Rated Voltage	440 VAC
Short Circuit Capacity	100 kArms
Response Time	<= 100 ns
SPD Type	Type 1, Class I
Voltage Protection Level Up	<=2.5 kV
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Depth	36 mm
Height	90 mm
Weight	369 g
Width	73 mm
Operating Temperature	-40 to 80 deg C
IP Rating	IP20
Standards and Approvals	UL

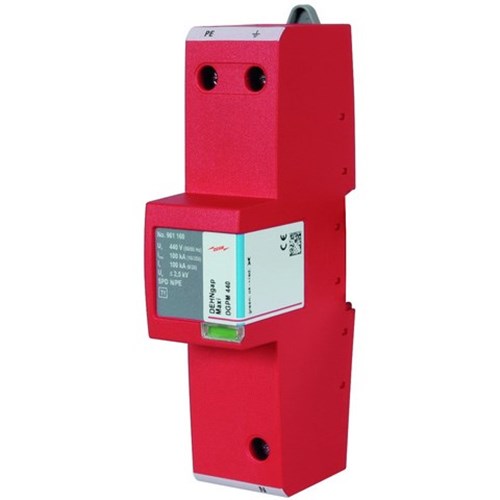

DEHN DGPM440 Lightning Arrester 100kA 440VAC 35mm DIN Rail 73mm W 36mm D 90mm H Thermoplastic IP20
