Specifications

Product Type	Surge Arrester
Brand	DEHN
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Breaking Capacity	100 A
Communication Ports	1
Rated Current	10 kA
Rated Short Circuit Current	25 kA
Rated Voltage	230 V
Response Time	<= 100 ns
SPD Type	Type 2
Voltage Protection Level Up	<=1.75 kV
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Depth	66 mm
Height	90 mm
Weight	117 g
Width	18 mm
Operating Temperature	-40 to 80 deg C
IP Rating	IP20
Standards and Approvals	EN 61643-11

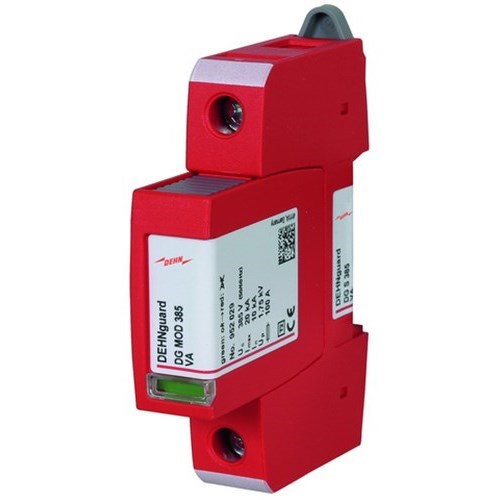

DEHN DGS385VA Surge Arrester 10kA 230V 35mm DIN Rail Mount Thermoplastic IP20
