Specifications

Product Type	Surge Arrester
Brand	DEHN
Cross Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	90 mm
Interrupt Rating	100 A
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	15 kA
Rated Short Circuit Current	25 kA
Rated Voltage	480 V
Response Time	<= 25 ns
SPD Class	Type 2
Standards and Approvals	KEMA, VDE, UL, CSA
Voltage Protection Level	<=2.5 kV
Weight	136 g
Width	18 mm

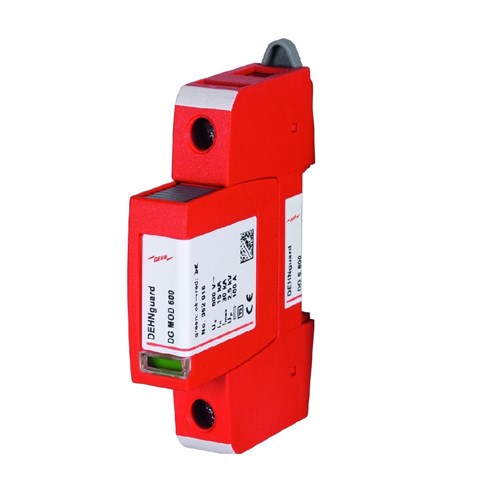

DEHN DGS600 Surge Arrester 15kA 480V 35mm DIN Rail Mount Thermoplastic IP20
