Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNpipe
Application	Parallel protection of a floating pair as well as intrinsically safe bus systems; C2 In line-line 150 A, line-PG 10 kA; Ui 30 V, Ii 0.55 A (EN 60079-11 limits); connecting lead 250 mm
Lightning Impulse Current Iimp (10/350µs)	1 kA
No. of Lines/Pairs	1 pair
Rated Voltage	22.6 VDC
Nominal Voltage	24 V
Voltage Protection Level Up	50 V
Nominal Current	550 mA
Nominal Discharge Current Inom (8/20µs)	10 kA
Max. Continuous Operating Voltage (DC)	32 V
Max. Continuous Operating Voltage (AC)	22.6 V
Mounting Method	M20 x 1.5 Aussengewinde
Weight	169 g
Operating Temperature	-50°C to 80°C
IP Rating	IP67

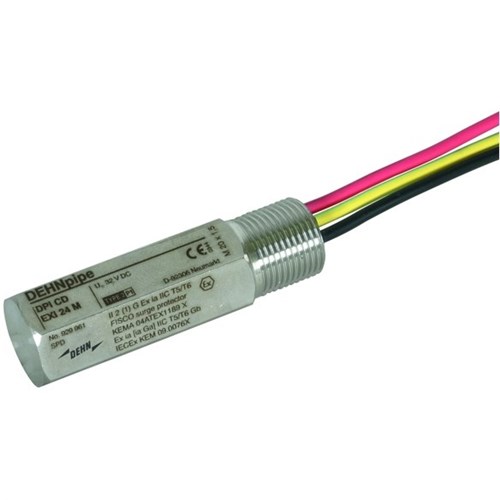

DEHN DPICDEXI24M Surge Arrester 22.6VDC IP67
