Specifications

Product Type	Earth Connecting Element with Wing Bolt
Brand	DEHN
Series	Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application	Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables.
Max. Short Circuit Current	42000 A
Rated Cross-Section	16 sq-mm
Suitable For	Earthing Rods
Rated Current	42000 A
Cable Cross Section	16 to 150 mm2
Material	Cu alloy/gal Sn / MCI/gal Zn, Cu alloy/gal Sn / brass/gal Zn, Cu alloy/gal Sn / St/gal Zn, Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel
Thread Size	M16 x 15 mm
Weight	350 g
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

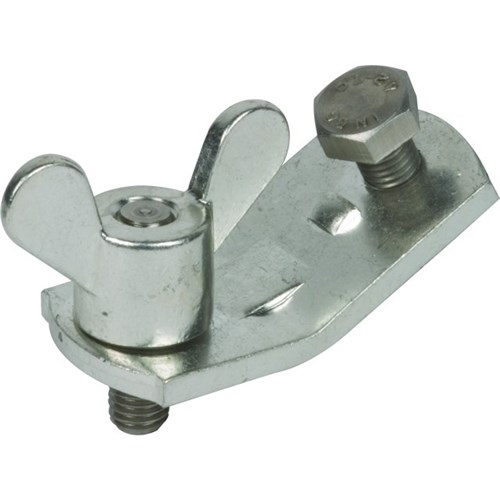

DEHN EASEKFS16 Earth Connection Unit W/M16 Wing Screw 42000A M16 x 15mm
