Specifications

Product Type	Angled with Terminal Lug
Brand	DEHN
Series	Fixed Ball Points
Application	Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.
Connection Type	20 mm Fixed Ball Point
Max. Short Circuit Current	14000 A
Rated Cross-Section	50 sq-mm
Suitable For	Earthing Rods
Fixed Ball Point Diameter	20 mm
Rated Current	14000 A, 9900 A
Cable Cross Section	50 mm2
Material	E-Cu/gal Sn, StSt A2-70
Mounting Type	Connector Lug
Depth	9 mm
Height	30 mm
Weight	129 g
Width	45 mm
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1

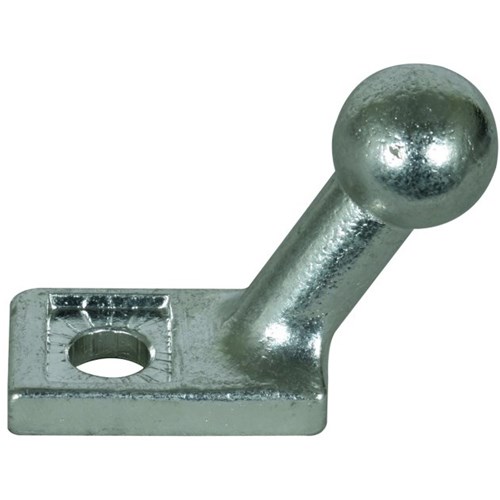

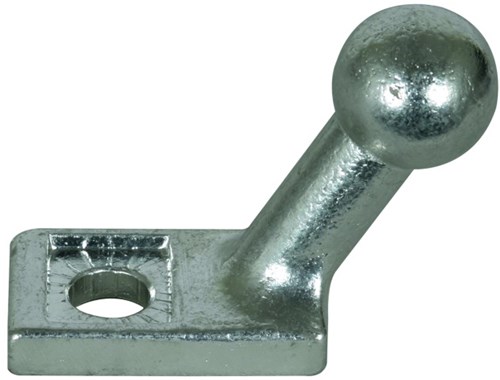

DEHN KFP20SAL12 Fixed Ball Point With Terminal Lug 14000A 9900A 20mm Connector Lug Mount 45mm W 9mm D 30mmH
