Specifications

Product Type	Straight with Round Conductor Half Shell for Round Copper Conductors
Brand	DEHN
Series	Fixed Ball Points
Application	Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.
Connection Type	25 mm Fixed Ball Point
Max. Short Circuit Current	26500 A
Rated Cross-Section	95 sq-mm
Suitable For	18 mm Round Conductor
Fixed Ball Point Diameter	25 mm
Rated Current	26500 A, 18700 A
Cable Cross Section	95 mm2
Material	E-Cu/gal Sn, StSt A2-70, Copper alloy/gal Sn, Stainless steel
Depth	56 mm
Height	82 mm
Weight	345 g
Width	45 mm
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

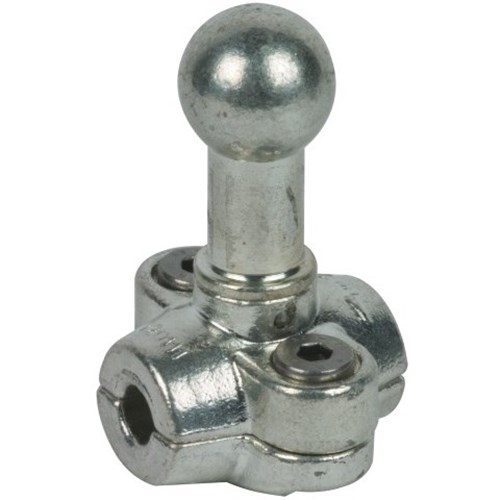

DEHN KFP25RL18 Fixed Ball Point 26500A 18700A 25mm 18mm
