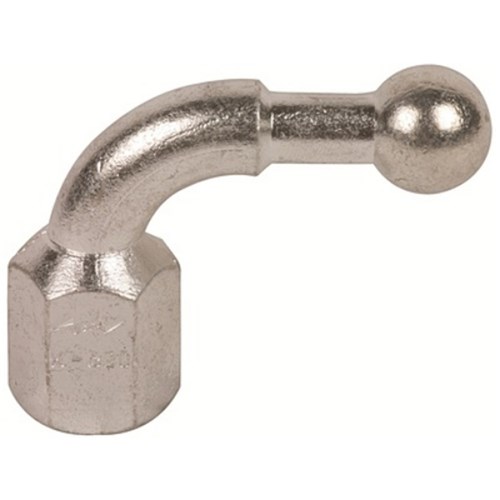

DEHN KFP25W90M16 Angled Fixed Ball Point With M16 Female Thread 26500A 18700A 25mm Internal Thread M16

Product Code: KFP25W90M16

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Angled Fixed Ball Point With M16 Female Thread
Brand DEHN
Connection Type 25 mm Fixed Ball Point
Rated Cross-Section 95 sq-mm
Suitable for Earthing Rods
Rated Current 26500 A, 18700 A
Material Electrolytic Copper, Tin Coated Copper
Mounting Type Internal Thread
Thread Size M16
Weight 370 g
Scan Angle 90 deg
Standards and Approvals EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1
