Specifications

Product Type	Angle Fixed Ball Point With Threaded Bolt and Nut
Brand	DEHN
Connection Type	25 mm Fixed Ball Point
Rated Cross-Section	95 sq-mm
Suitable for	Earthing Rods
Rated Current	26500 A, 18700 A
Material	Electrolytic Copper, Tin Coated Copper
Mounting Type	Thread Bolt
Thread Size	M16 x 45 mm
Tightening Torque	100-110 N-m
Weight	491 g
Scan Angle	90 deg
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1

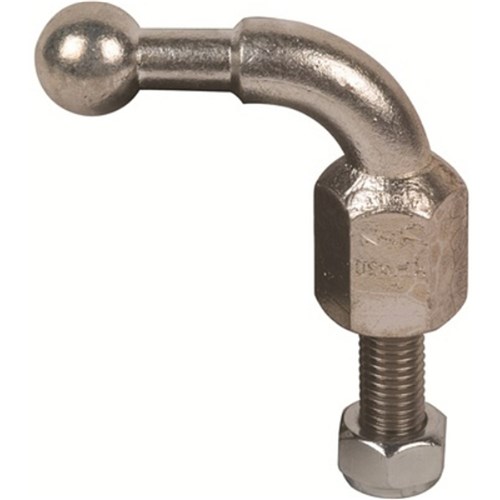

DEHN KFP25W90M1645SSM Angled Fixed Ball Point With Threaded Bolt and Nut 26500A 18700A 25mm Thread Bolt Mount M16x45mm
