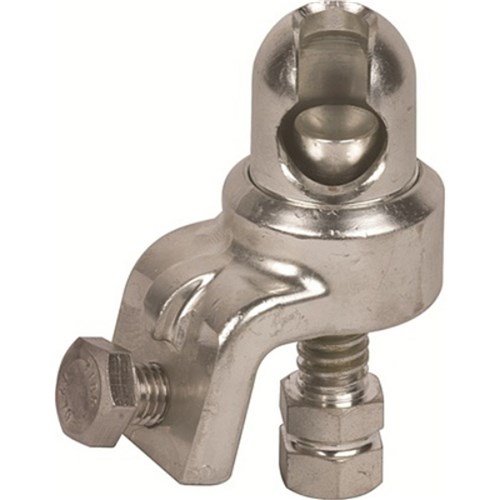

DEHN KKH20DSK Ball Head Cap With Adjustable Hexa Shaft 33500A 20mm Fixed Ball Point 64mm W 42mm D 125mm H Copper Alloy

Product Code: KKH20DSK

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Ball Head Cap With Adjustable Hexa Shaft
Brand DEHN
Connection Type 20 mm Fixed Ball Point
Cross Section 16-120 sq-mm
Depth 42 mm
Height 125 mm
Material Copper Alloy
Operational Temperature -25 to 55 deg C
Rated Current 33500 A
Standards and Approvals EN/IEC 61230 (DIN VDE 0683-100)
Suitable For Use With Earthing Rods
Weight 560 g
Width 64 mm
