Specifications

Product Type	Adjustable Ball Head Cap (4x 90 degrees), T Pin Shaft
Brand	DEHN
Series	Phase Connecting Elements for Switchgear Installations
Application	Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables
Connection Type	20 mm Fixed Ball Point
Max. Short Circuit Current	33500 A
Rated Cross-Section	16-120 sq-mm
Suitable For	Earthing Rods
Fixed Ball Point Diameter	20 mm
Rated Current	33500 A
Cable Cross Section	16 to 120 mm2
Material	Copper alloy/gal Sn
Depth	42 mm
Height	140 mm
Weight	566 g
Width	64 mm
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

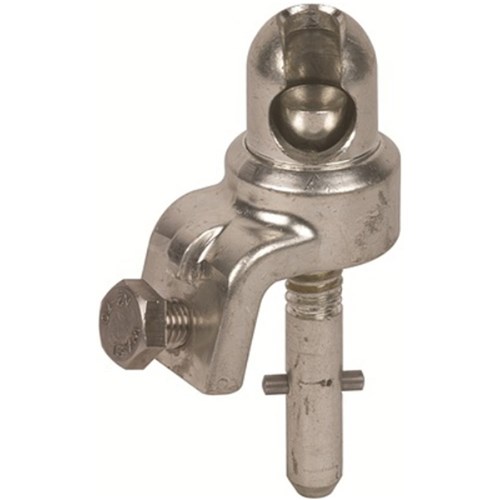

DEHN KKH20DSQ Ball Head Cap With Adjustable T-Pin Shaft 33500A 20mm Fixed Ball Point 140mm H
