Specifications

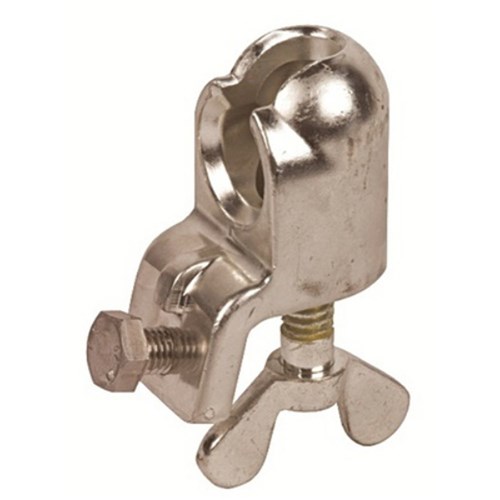

Product Type	Rigid Ball Head Cap with Wing Bolt
Brand	DEHN
Series	Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application	Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables.
Connection Type	20 mm Fixed Ball Point
Max. Short Circuit Current	33500 A
Rated Cross-Section	16-120 sq-mm
Suitable For	25 to 120 sq-mm Cables
Fixed Ball Point Diameter	20 mm
Rated Current	33500 A
Cable Cross Section	16 to 120 mm2
Material	Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel
Depth	3 mm
Height	11 mm
Weight	480 g
Width	9 mm
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

DEHN KKH20FS Ball Head Cap 33500A 20mm Fixed Ball Point 9mm W 3mm D 11mm H Copper Alloy
