Specifications

Product Type	Rigid Ball Head Cap
Brand	DEHN
Series	Phase Connecting Elements for Overhead Lines
Application	Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables
Connection Type	20 mm Fixed Ball Point
Max. Short Circuit Current	33500 A
Rated Cross-Section	16-120 sq-mm
Suitable For	25 to 120 sq-mm Cables
Fixed Ball Point Diameter	20 mm
Rated Current	33500 A
Cable Cross Section	16 to 120 mm2
Material	Copper alloy/gal Sn, St/gal Zn
Depth	31.5 mm
Height	200 mm
Weight	446 g
Width	58 mm
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)

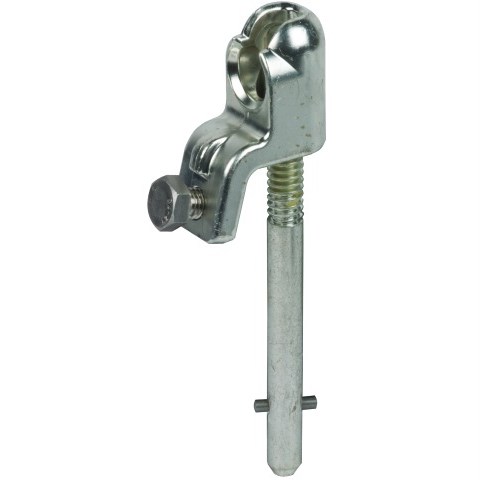

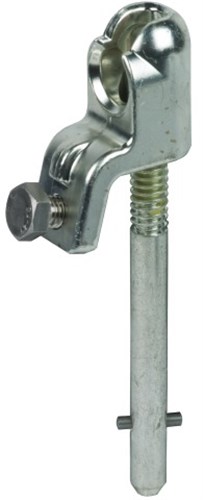

DEHN KKH20SQL Ball Head Cap 33500A 20mm Fixed Ball Point 58mm W 31.5mm D 200mm H Copper Alloy
