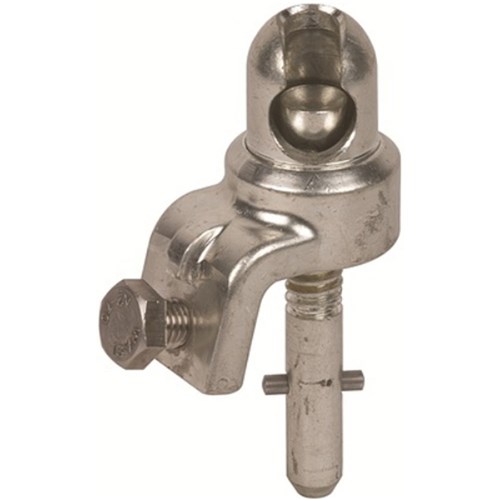

DEHN KKH25DSQ Ball Head Cap 42000A 25mm Fixed Ball Point 9mm W 6mm D 12mm H Copper Alloy

Product Code: KKH25DSQ

1

Specifications

Product Type	Ball Head Cap
Brand	DEHN
Connection Type	25 mm Fixed Ball Point
Rated Cross-Section	16-150 sq-mm
Suitable for	Earthing Rods
Rated Current	42000 A
Material	Copper Alloy
Depth	6 mm
Height	12 mm
Weight	0.9 kg
Width	9 mm
Operating Temperature	-25 to 55 deg C
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
