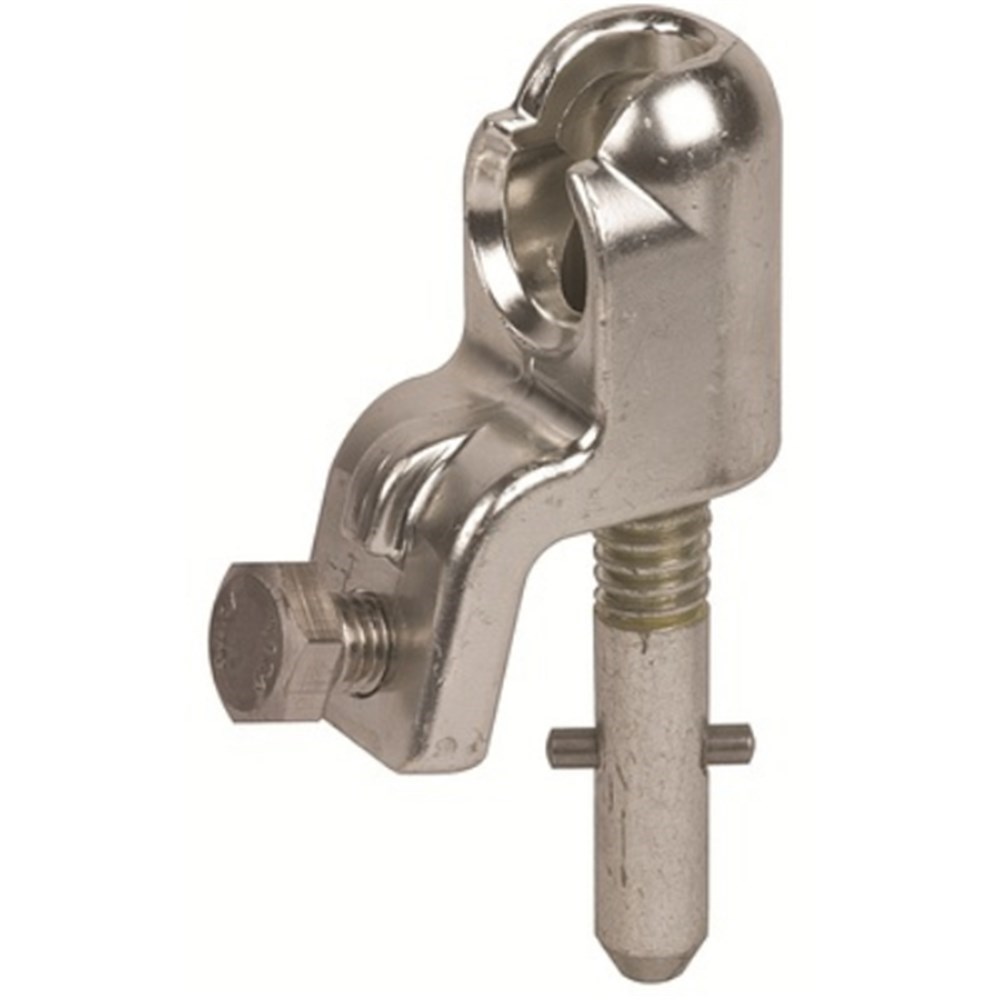

DEHN KKH25SQ Ball Head Cap W/T-Pin Shaft 42000A 25mm Fixed Ball Point 8mm W 4mm D 13mm H Copper Alloy

Product Code: KKH25SQ

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Ball Head Cap With T-Pin Shaft
Brand DEHN
Connection Type 25 mm Fixed Ball Point
Cross Section 16-150 sq-mm
Depth 4 mm
Height 13 mm
Material Copper Alloy
Operational Temperature -25 to 55 deg C
Rated Current 42000 A
Standards and Approvals EN/IEC 61230 (DIN VDE 0683-100)
Suitable For Use With Earthing Rods
Weight 0.76 kg
Width 8 mm
